6T Brake System Front 07-25 Jeep Wrangler JK/JL And 20-25 Gladiator JT W/OE Spindles And Hubs Red Baer Brakes

5 inch, 1-piece slotted and zinc-plated rotor. T compliant dust and weather seals and uses the popular D1247 pad type.

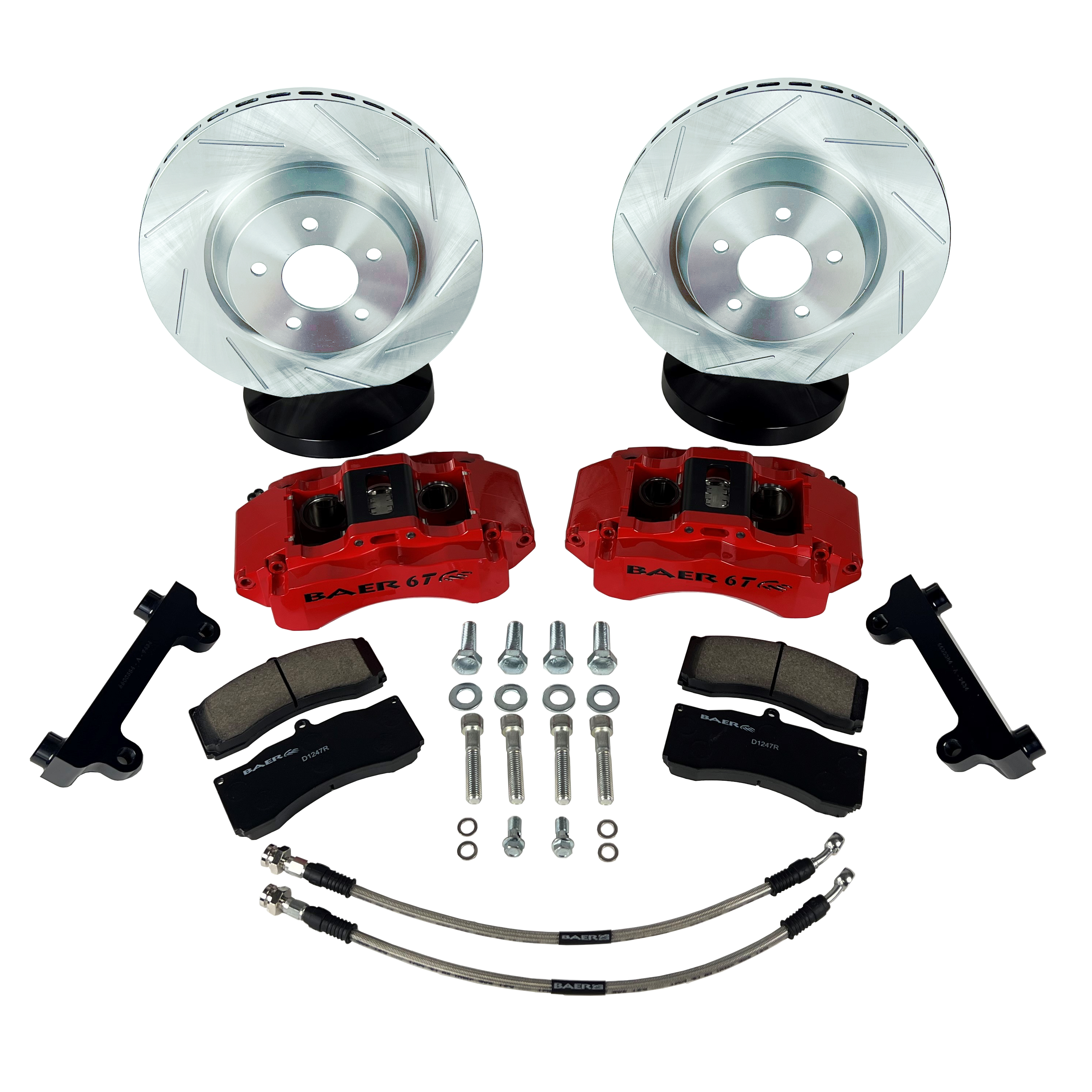

Rotors are purpose cast using only premium materials and feature a curved vane design for optimum cooling, consistant braking and reduced brake fade. All mounting brackets, stainless braided hosesand hardware are also included.

5 inch 6T Brake kits are designed to fit most 17 inch or larger wheels.

Note: Hoses included are for stock height vehicles, lifted vehicles may require longer hoses.

Features and Benefits:

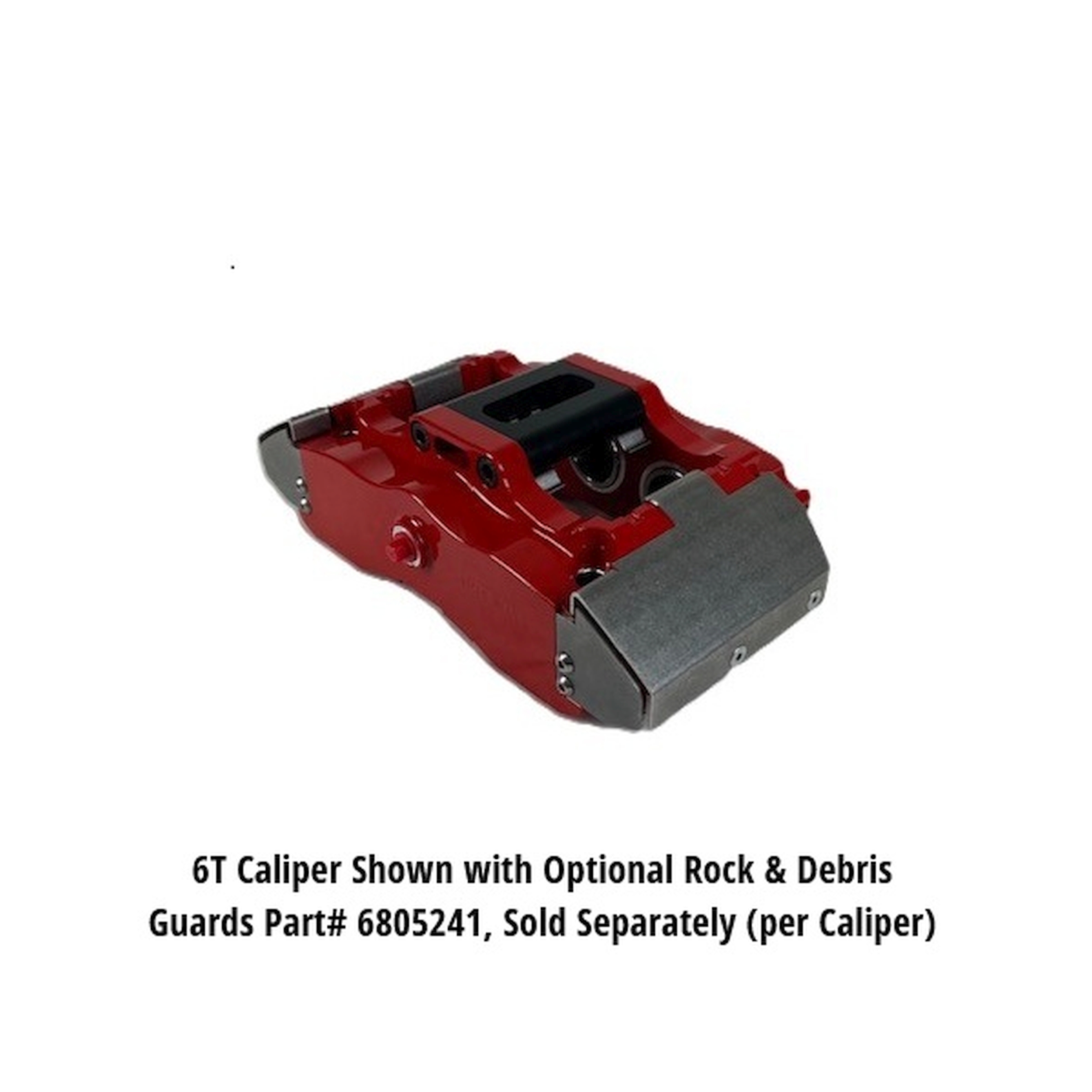

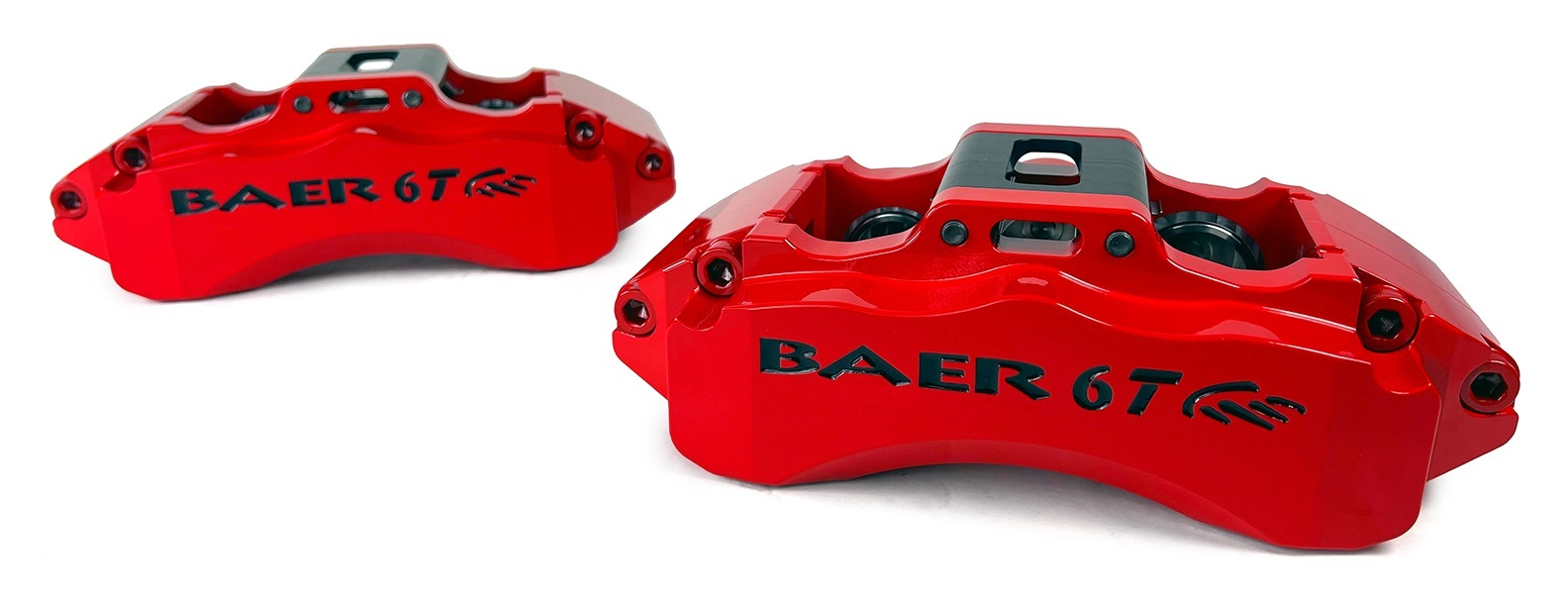

• 2-Piece, 6-Piston, 6T Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather & Pressure

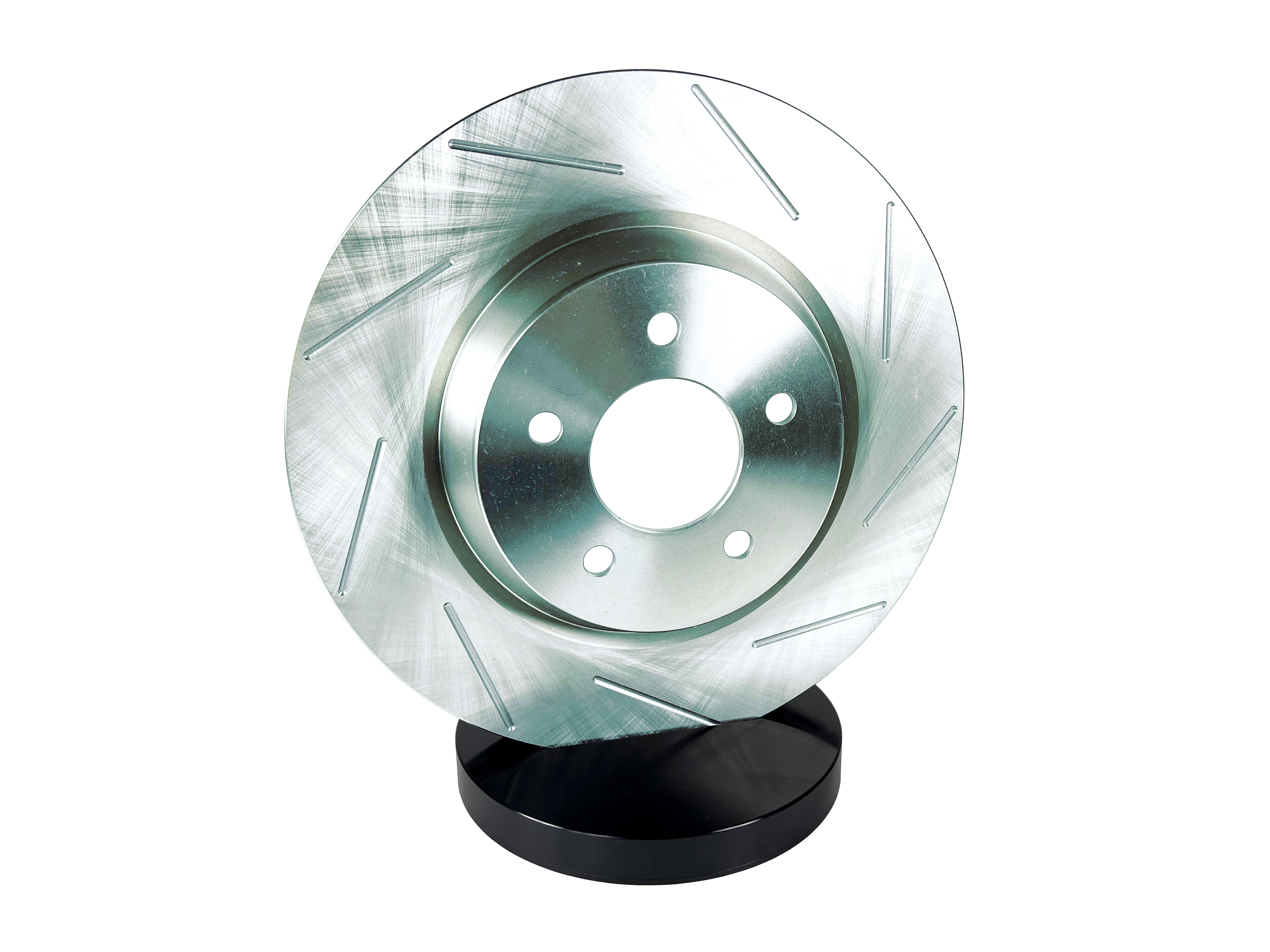

• 1-Piece Slotted & Zinc-Plated Rotor

Note: Jeep JK Model years 2007-18 equipped with a 1.00 inch master cylinder, it is recommended to upgrade to Mopar Performance Booster/Master Cylinder P/N P5160050AB, see instructions for more info.

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Caliper: 6T

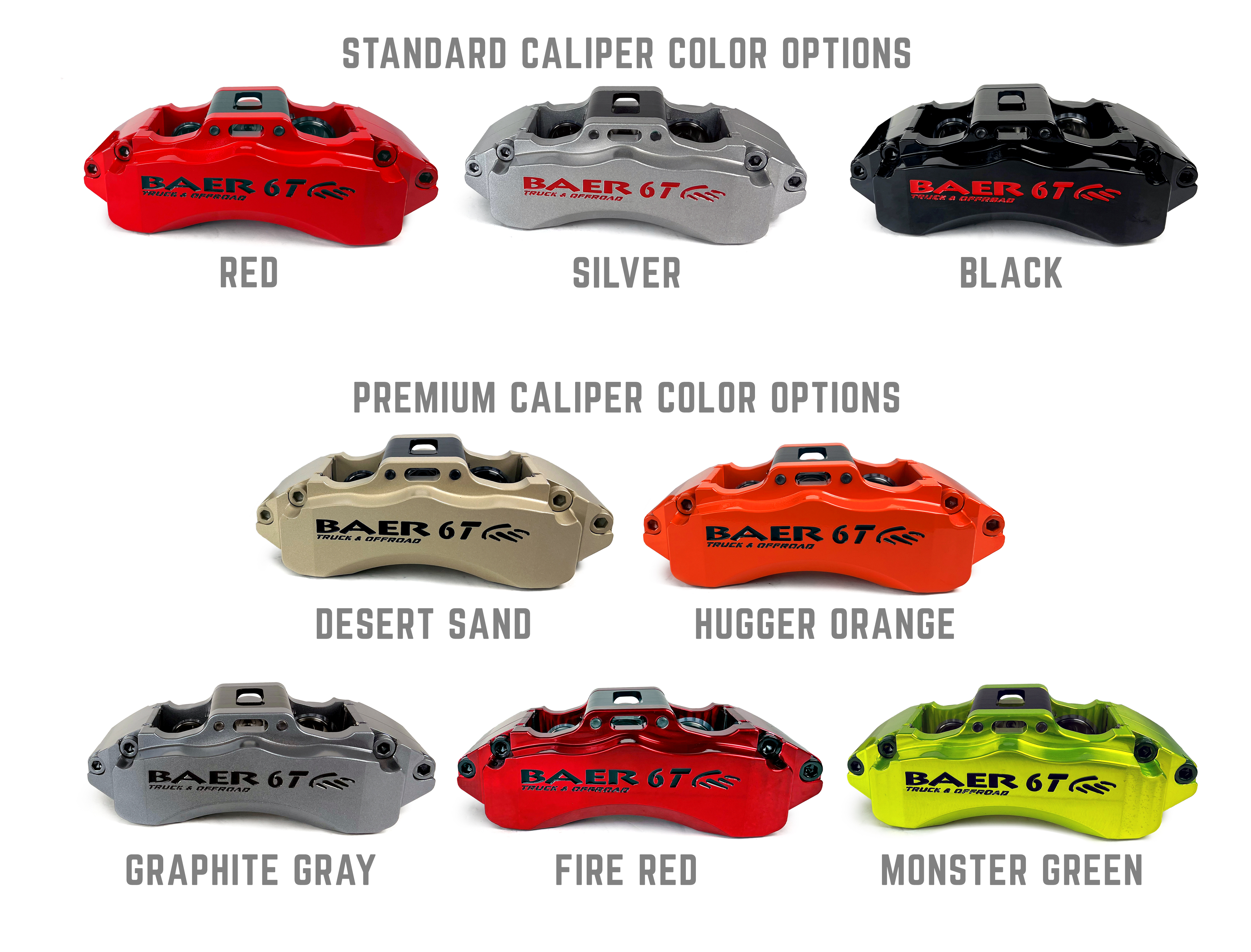

• Caliper Color: Red
• Disc Brake Rotor (Front) Outside Diameter: 13.5 Inch
• Applications: Jeep Wrangler 07-17, Jeep Wrangler 18-25, Jeep Gladiator 20-25
• Axle: Front
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Front) Piston Quantity: 6
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: D1247
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Friction Material Composition: Semi-metallic
• Grade Type: Performance
• Hose Material: Steel Braided
• Lug Count: 5 Lug
• Min Wheel Diameter: 17.0 Inch
• Rotor Thickness: 1.3
• Rotor Type: 1-Piece
• Solid Or Vented Type Rotor: Vented
• Surface Type: Slotted and Zinc Plated
• Template: O084M

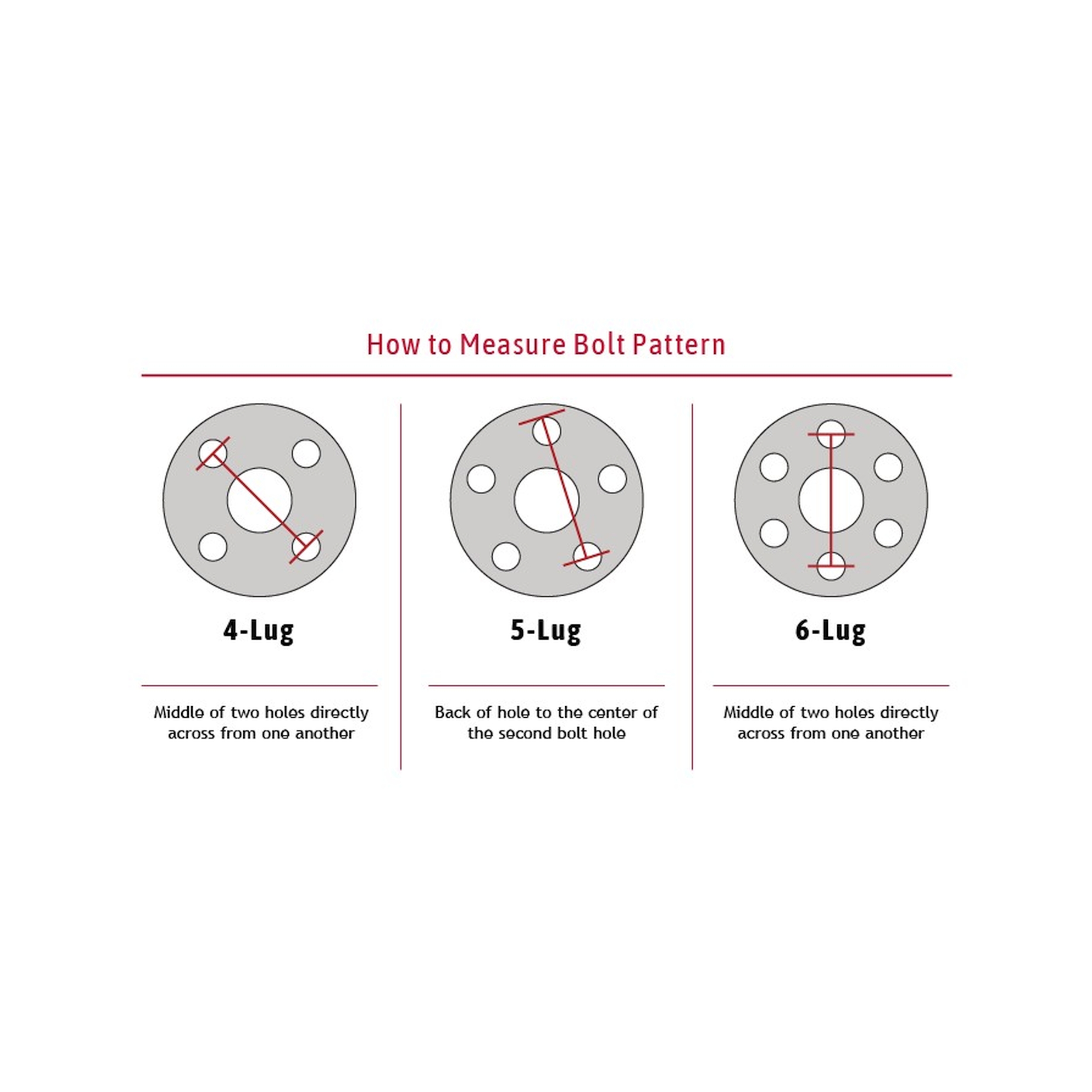

• Wheel Lug/Bolt Pattern: 5x5.00
